Z314 Premium Near Edge Resin Ribbon
- Excellent image density & edge definition ensures quality imprints and exceptional scan rates
- Withstands water and oils associated with food production
- Withstands chemicals like isopropyl alcohol, bleach, and more
- “Drop in” performance…Plug and Play to the OEM ribbon equivalents.
- Heat resistance up to 221°F (105°C)
- Reduce Total Cost of Ownership with 20-25% longer than standard ribbons – less change overs
- Thinner ribbon properties optimize energy use - extending the life of the printhead
- Halogen free

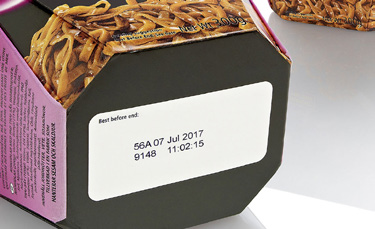

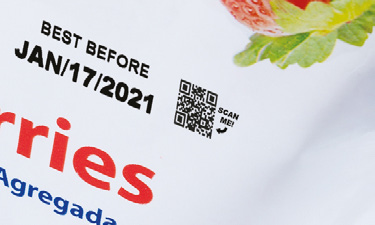

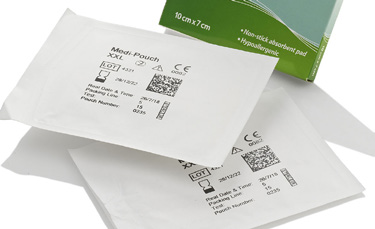

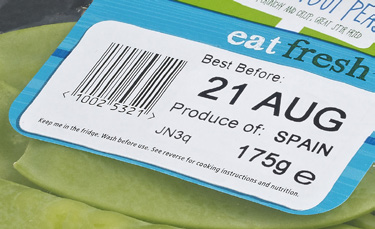

Z314 Near Edge Resin is used for imprinting date, price, lot, and bar codes directly onto flexible packaging. Providing excellent performance in the harshest environments. Engineered for use in high temperature applications including hot fill. Z314 provides excellent print darkness and is compatible with a wide range of film applications offering excellent scratch, smear, heat, and chemical resistance. This Resin formulation is coated on a 4.0 micron PET- carrier film. This thinner film technology offers improved productivity through longer length ribbons and reduced printer downtime related to ribbon changeovers. Low transfer energy properties combined with our antistatic back coat allow the user to extend the life of the printhead and reduce maintenance costs.
- Polyethylene/LDPE
- PET
- Metalized PET
- Polypropylene/PP
- Polyolefin
- Synthetic fibers
- Synthetic paper
- Synthetics (plastic)Textiles
- Food and Beverage
- Healthcare and Medical Device
- Industrial Printing
- Retail
|
SKU
Z314
|
|
Product Color
Black
|
|
Total Thickness
6.4 ± 0.5 µm
|
|
Ink Thickness
2.0 ± 1.0 µm
|
|
Film Thickness
4.0 µm
|
|
Electrostatic
≤ 0.15 Kv
|
|
Optical Density
≥ 2.0 D
|
|
Ink Melt Point
105° C
|
|
Storage
|
