Z300 Versa Resin Ribbon

In Stock
Best choice for extreme environments
  • High print speed capability-up to 10 ips
  • High density printing
  • Low energy requirement extend printhead life
  • Outstanding print latitude on wide variety of materials
  • "Plug & Play" compatibility with industry leading resins
  • UL/CSA Recognized
  • Best choice for extreme environments
  • GHS and BS56509 certified
Product Features

Z300 premium barcode resin ribbon is a high performance flat-head resin ribbon which expands the boundaries of traditional resin formulations, in terms of print speed and image sensitivity. Z300 is capable of high speed printing, up to 10 ips, allowing significant improvements to labeling productivity and the use in high speed print/apply applications. The low energy characteristics of this ribbon allow users to reduce their printhead heat levels, therefore extending the life and reducing the costs of printhead ownership. The low energy characteristic of the Z300 is ideally suited for the rapidly growing desktop printing market, where print head energy management can be more limited. The increased image sensitivity of the Z300 provides outstanding print quality onto a wide variety of materials, including the newer value-prices films, therefore providing a lower cost of ownership model for the end-user. Z300 provides dark, crisp printed images and our proprietary anti-statics back coating formulation dissipates static levels and works to extend the life of your valuable printheads.

Manufacturer Direct - As the only thermal transfer ribbon manufacturer that equipped with the vertical integration capability of PET base film, IMP offers a full line of "drop in replacement" thermal transfer barcode ribbon and hot stamp coding foil ribbon solutions at significant cost savings.

Product Applications
  • Z300 Versa Resin Ribbon
  • Z300 Versa Resin Ribbon
  • Z300 Versa Resin Ribbon
  • Z300 Versa Resin Ribbon
  • Z300 Versa Resin Ribbon
Application
Chemicals
Laboratory
Printed circuit board
Signage and Post
Storage
Tire
Barcode Label Ribbon
Printing substrate
  • Coated Papers
  • Synthetics (plastic)Textiles
  • Polyethylene/LDPE
  • PET
Industry
  • Automotive
  • Chemical Labeling
  • Electronics
  • Healthcare and Medical Device
  • Industrial Printing
  • Logistics
  • Outdoor
Product Details
SKU
Z300
Product Color
Black
Total Thickness
6.0 ± 0.5 µm
Ink Thickness
1.2 ± 0.2 µm
Electrostatic
≤ 0.15 Kv
Optical Density
≥ 1.8 D
Ink Melt Point
79 °C
Storage
  • Use within 12 months recommended
  • Keep away from UV and direct sunlight
  • Temperature 5-35°C (40-95°F)
  • Humidity 20-80%

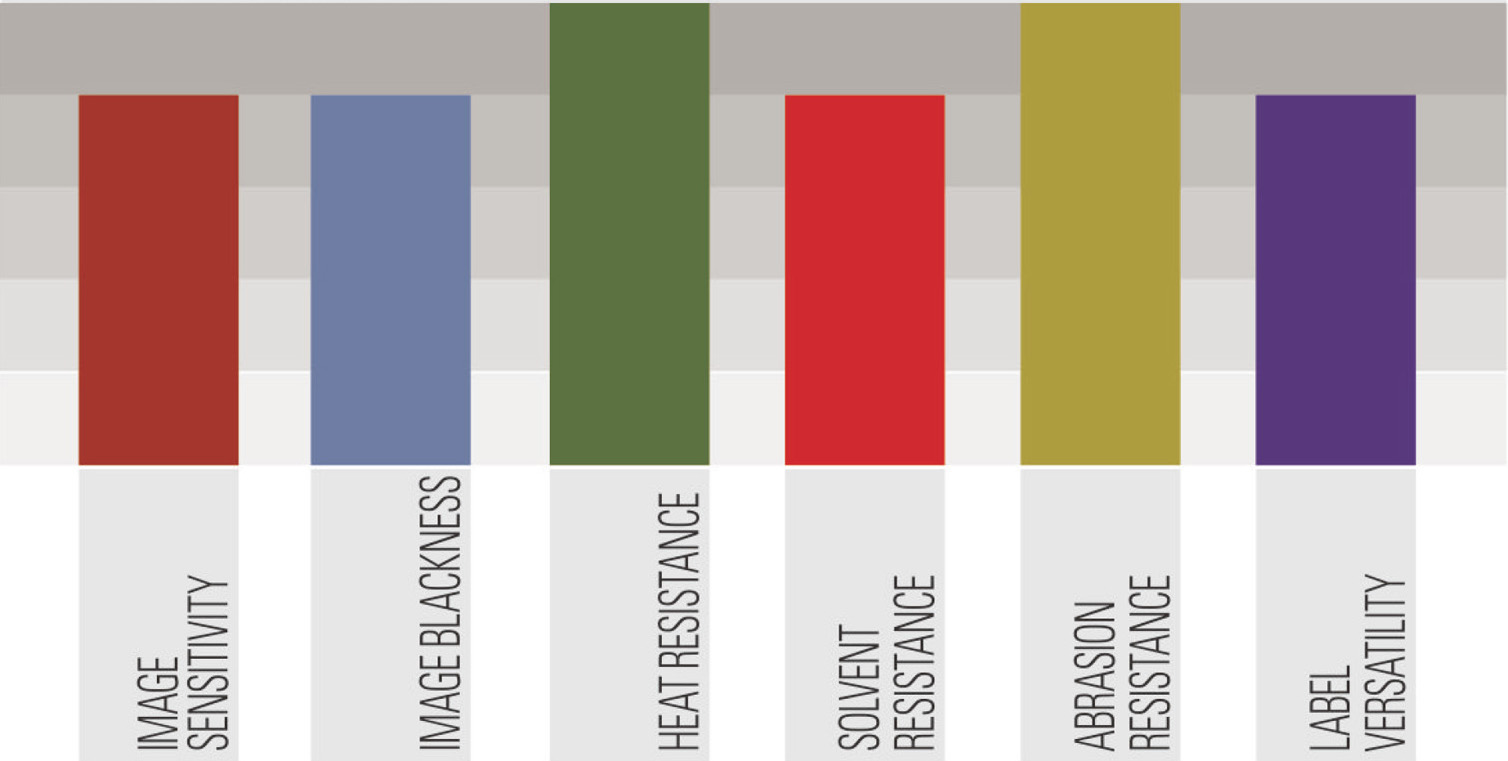

Printing Characteristics
Z300 Versa Resin Ribbon
Certificates & Warranties
BS 5609
BS 5609
CSA
CSA
ISO 14001
ISO 14001
ISO 18001
ISO 18001
ISO 9001
ISO 9001
UL
UL
