Z203 Super Premium Wax/Resin Ribbon
Z203 Super Premium Wax/Resin Ribbon

Z203 Super Premium Wax/Resin Ribbon

In Stock
Redefining the Wax/Resin Category
  • Resin-like performance at wax/resin imaging properties
  • Superior heat, abrasion & chemical resistance
  • Low printhead energy requirements
  • Excellent image density & edge definition
  • Lower cost of ownership for user
Product Features

Z203 super premium wax/resin ribbon (barcode ribbon) redefines the traditional wax/resin category with its unique price/performance value. Developed using a high performance resin-type formulation, Z203 utilizes a thinner polyester base material resulting in a more thermally responsive ink, allowing the product to provide resin-like performance, at lower printhead energies and faster printer speeds more typical of wax/resin products. Z203 super premium wax/resin ribbon offers excellent solvent, heat, and image durability comparable to industry leading resin products as well as providing the user with a lower cost of ownership for medical, pharmaceutical, and electronic applications. Our proprietary anti-static back coating formulation dissipates static electricity and works to protect and extend the life of your valuable printheads.

Manufacturer Direct - As the only thermal transfer ribbon manufacturer that equipped with the vertical integration capability of PET base film, IMP offers a full line of "drop in replacement" thermal transfer barcode ribbon and hot stamp coding foil ribbon solutions at significant cost savings.

Application
Storage
Shipping Carton
Bag of products
Distribution label
Flexible packaging
IV Bags
Printed circuit board
Printing substrate
  • Coated Papers
  • Uncoated Papers
  • Tag stocks
  • Synthetics (plastic)Textiles
  • Polyethylene/LDPE
Industry
  • Automotive
  • Electronics
  • Healthcare and Medical Device
  • Logistics
  • Outdoor
  • Retail
Product Details
SKU
Z203
Product Color
Black
Total Thickness
5.9 ± 0.3 µm
Ink Thickness
2.55 ± 0.4 µm
Electrostatic
≤ 0.03 Kv
Optical Density
≥ 1.8 D
Ink Melt Point
78 °C

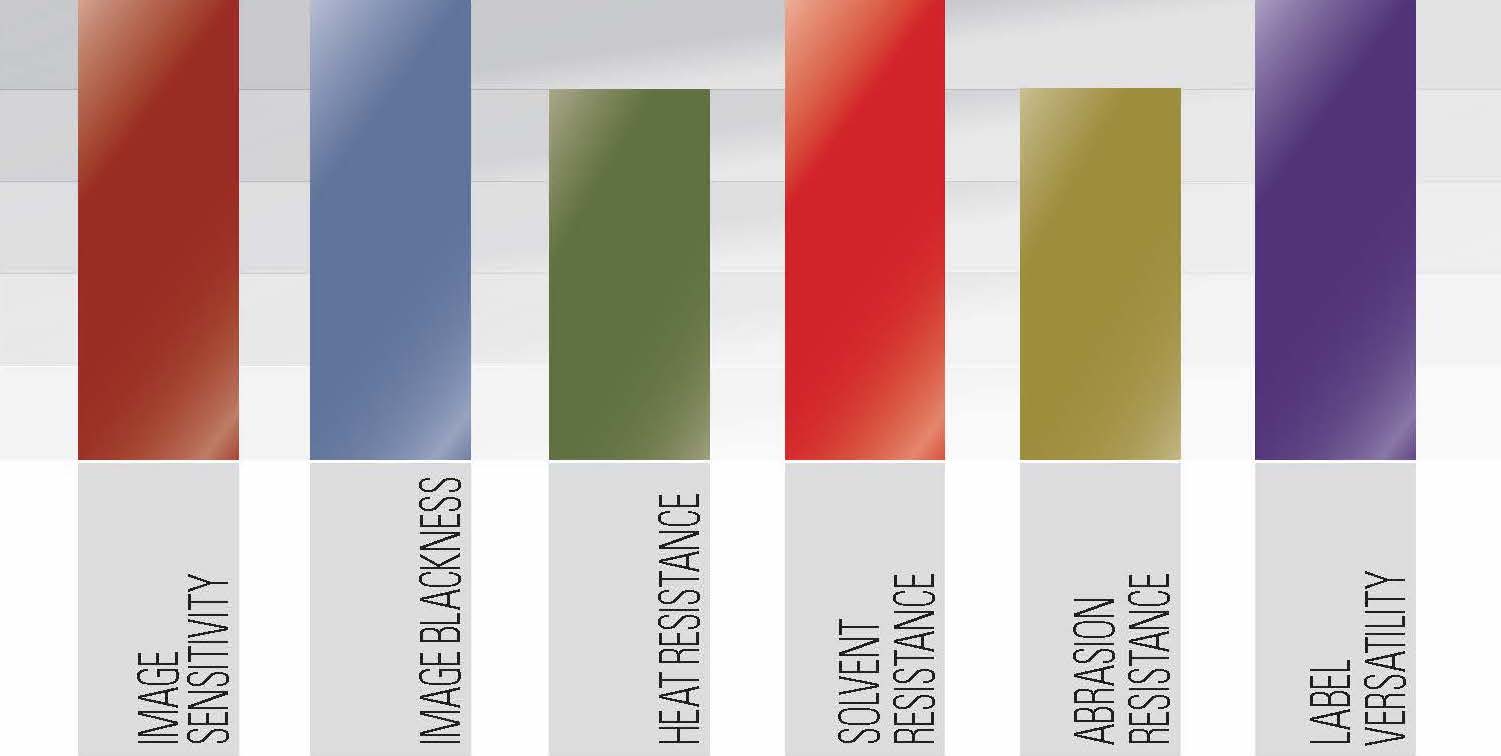

Printing Characteristics
Z203 Super Premium Wax/Resin Ribbon
Certificates & Warranties
Halogen
Halogen Free
ISO 14001
ISO 14001
ISO 18001
ISO 18001
ISO 9001
ISO 9001
Reach/SVHC
REACH / SVHC Free
RoHS
Heavy Metals
UL
UL
